BMW N55 Stage 3 Full-Frame Turbo Kit
Built by enthusiasts, for enthusiasts.
The BigBoost N55 Stage 3 Turbo Kit replaces the limitations of the factory-style hybrid turbo with a true full-frame turbo system designed for higher power, improved efficiency, and long-term performance.
Unlike a hybrid turbo that retains the factory turbine housing and packaging limitations, a full-frame setup gives you a larger turbine section, improved exhaust flow, lower back pressure, and more room to increase power without pushing the turbocharger beyond its efficient operating range.
Full-Frame Performance
Hybrid turbos can provide fast spool and a simple installation, but they remain limited by the size and flow capacity of the factory housing.
Our full-frame turbo system provides:
• Increased exhaust flow capacity
• Lower exhaust back pressure
• Improved efficiency at higher boost levels
• More consistent performance at high engine speeds
• Greater power potential
• Reduced stress on the turbocharger at elevated power levels
• More turbocharger options as your build develops
The result is a system designed to make power efficiently rather than relying on excessive boost pressure from a restricted factory-style housing.
Modular and Upgradeable
The BigBoost N55 kit uses a modular design that allows you to select the turbocharger that best matches your build.
Choose the 6266 for a responsive street and racing setup, or select the 6466 for increased airflow and higher power potential.
Because the system uses a full-frame turbocharger and external wastegate configuration, you can upgrade or service individual components without replacing the complete turbo system. This gives you more flexibility as your power goals change.

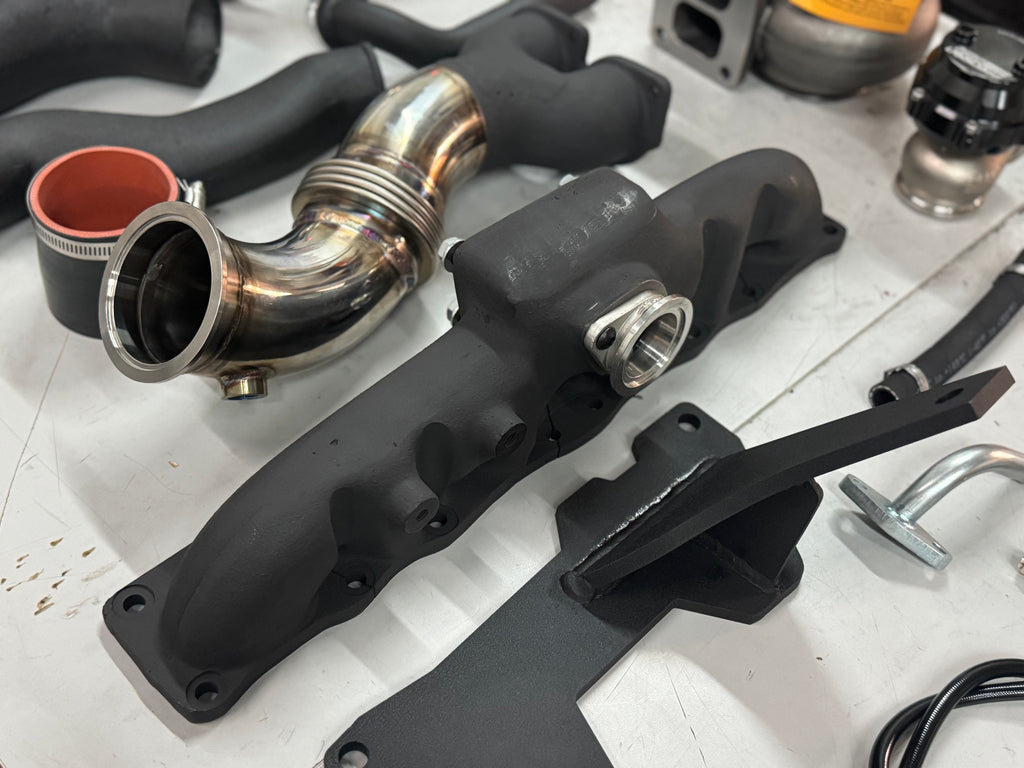

Engineered Twin-Scroll Manifold
Our twin-scroll manifold uses 1.5-inch runners for all six cylinders. The manifold maintains proper exhaust pulse separation and directs exhaust energy efficiently into the divided turbine housing.
The twin-scroll configuration supports strong turbo response while providing the airflow capacity required for higher-power N55 applications.
Tested Under Real Conditions
We completed extensive in-house testing while measuring individual cylinder exhaust gas temperatures and exhaust back pressure.
During testing, our system produced approximately 1.11:1 to 1.12:1 exhaust back pressure ratios. These results demonstrate the efficiency of the manifold and turbine system under the tested conditions.
Lower back pressure helps reduce exhaust restriction, improves cylinder evacuation, and allows the engine to operate more efficiently at higher power levels.
Our turbo systems have also been used in race vehicles competing in six-hour to twelve-hour endurance events. These applications place sustained thermal and mechanical loads on the engine and turbo system, providing valuable real-world validation beyond short dyno runs.
No Water Pump Relocation
Many full-frame N55 turbo systems require relocating the factory electric water pump to create additional clearance.
The BigBoost N55 kit keeps the water pump in its original factory location.
This reduces installation complexity, limits unnecessary changes to the cooling system, and preserves the original water pump mounting and routing.

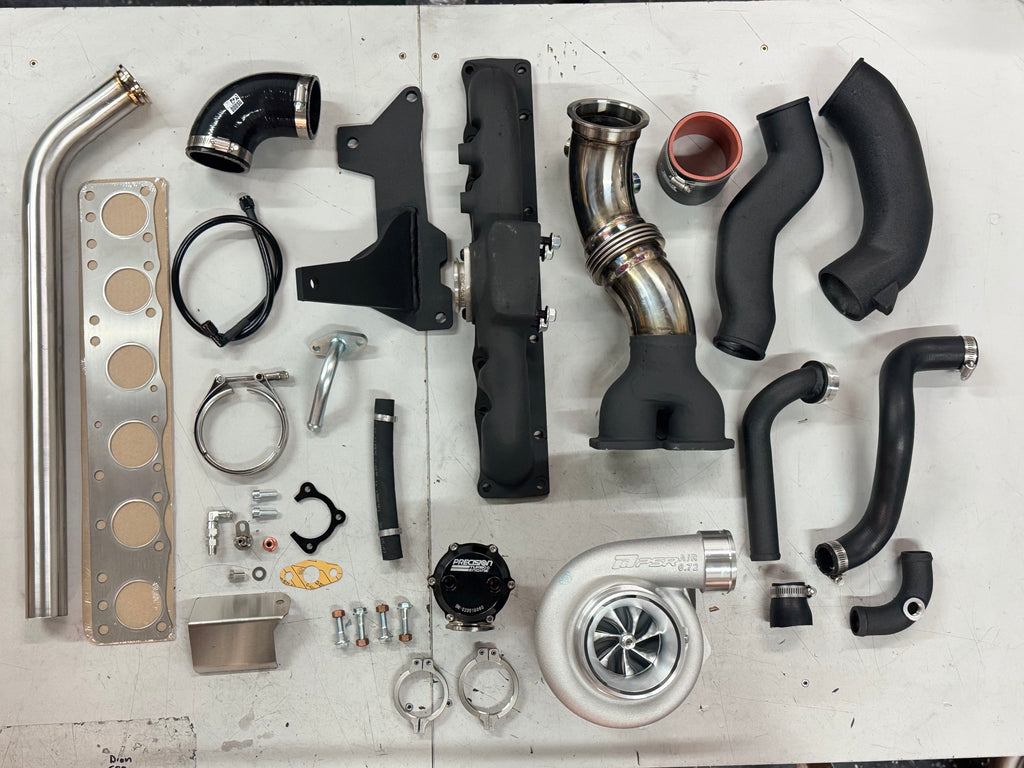

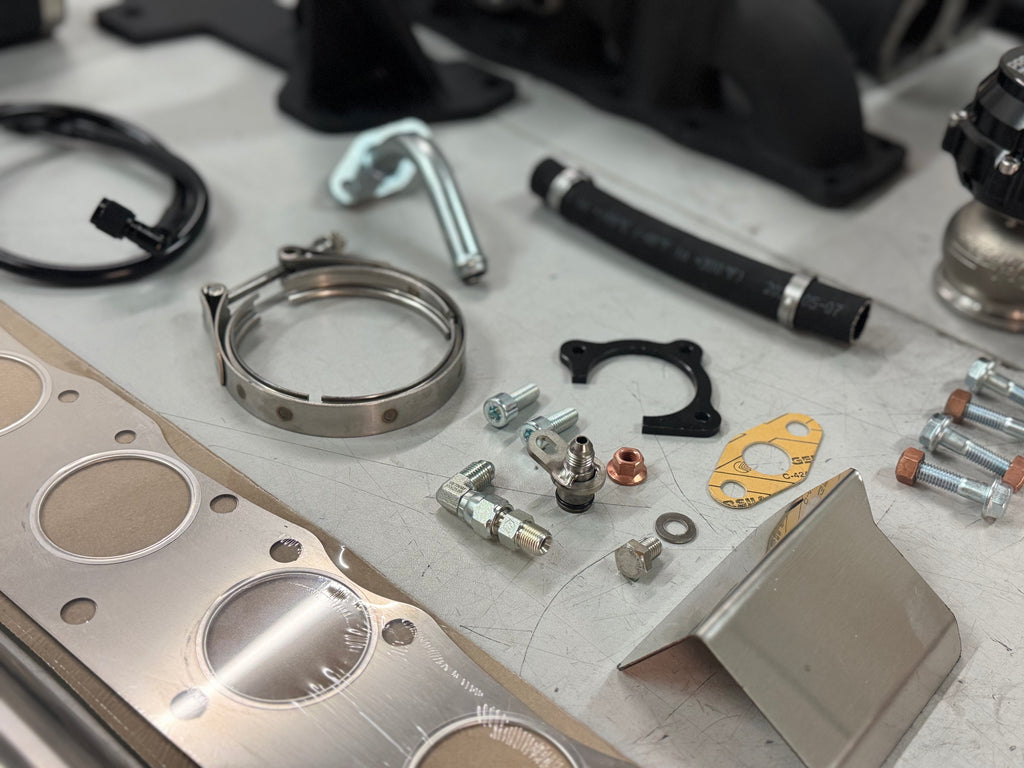

Kit Includes:
• Twin-scroll tubular turbo manifold with 1.5-inch runners for all six cylinders
• Turbocharger of your choice, 6266 or 6466

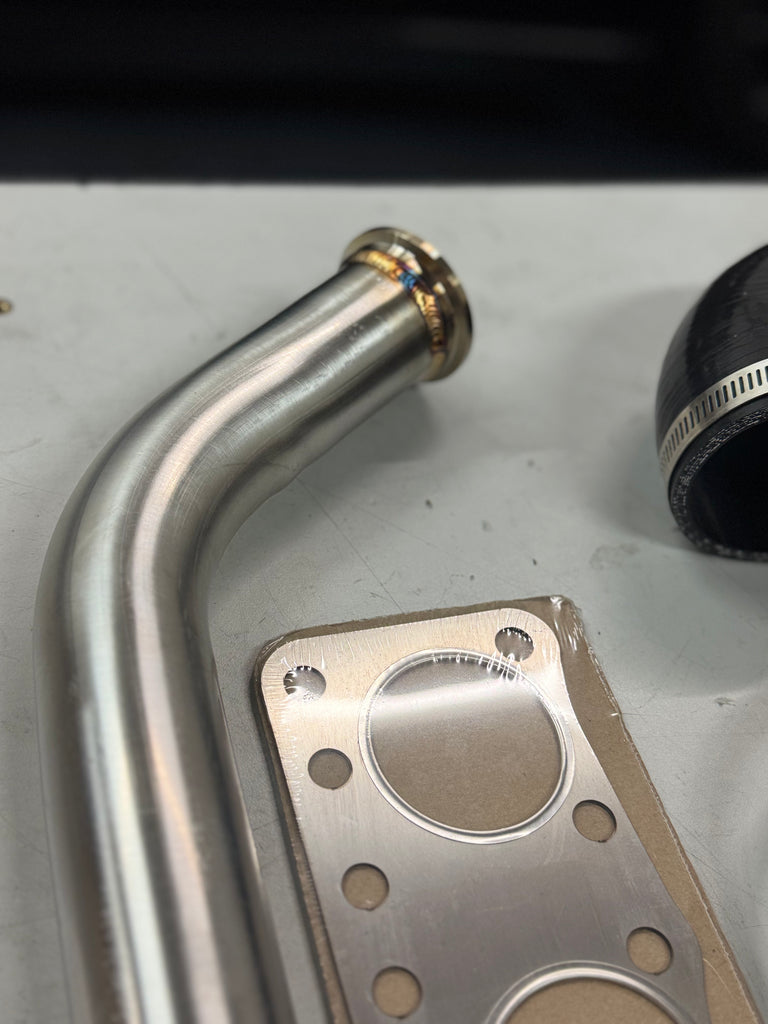

• External wastegate
• Wastegate dump pipe

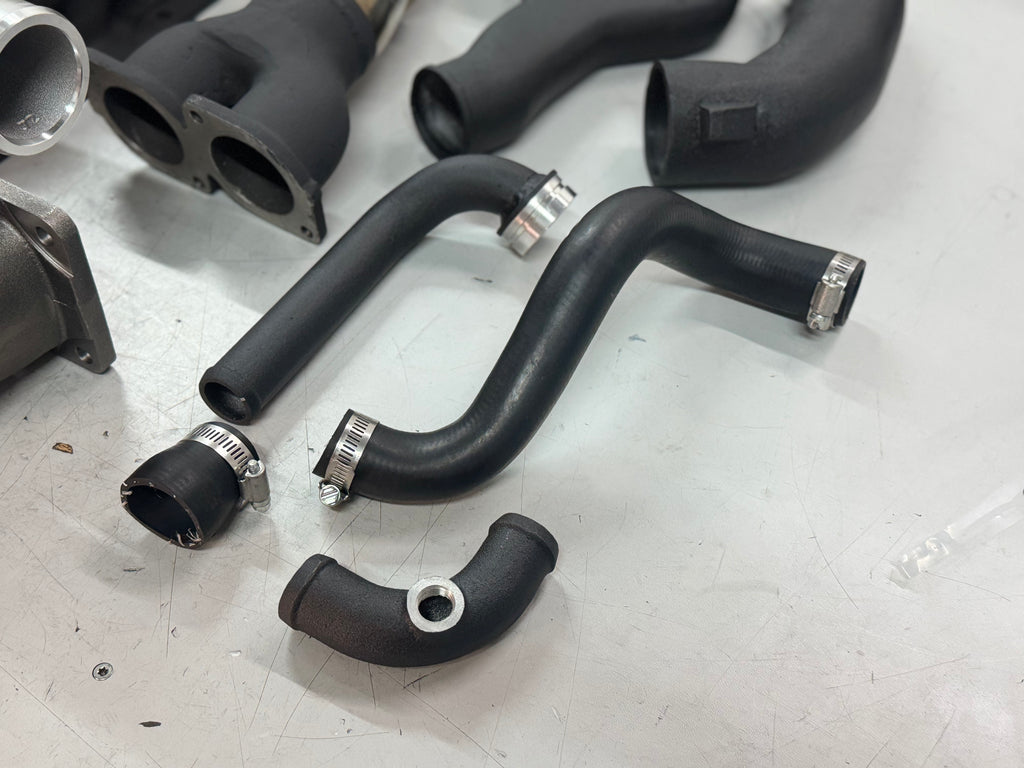

• Four-ply silicone hoses
• V-band clamps
• Aeroquip coolant hoses
• Cooling-system hard pipe
• Boost pipe
• 3-inch turbocharger inlet
• Stainless steel braided AN oil feed line
• Stainless steel turbo oil feed fitting
• Turbo oil drain coupler
• Aeroquip oil drain hose
• Stainless steel hose clamps
Why Choose the BigBoost Stage 3 Kit?
The BigBoost N55 Stage 3 Turbo Kit gives you the airflow, efficiency, and upgrade potential of a true full-frame turbo system while maintaining the factory water pump location.
It provides a complete foundation for high-performance street cars, drag racing builds, road racing applications, and endurance vehicles.
Choose your turbocharger based on your current goals, then upgrade individual components as your build develops.
